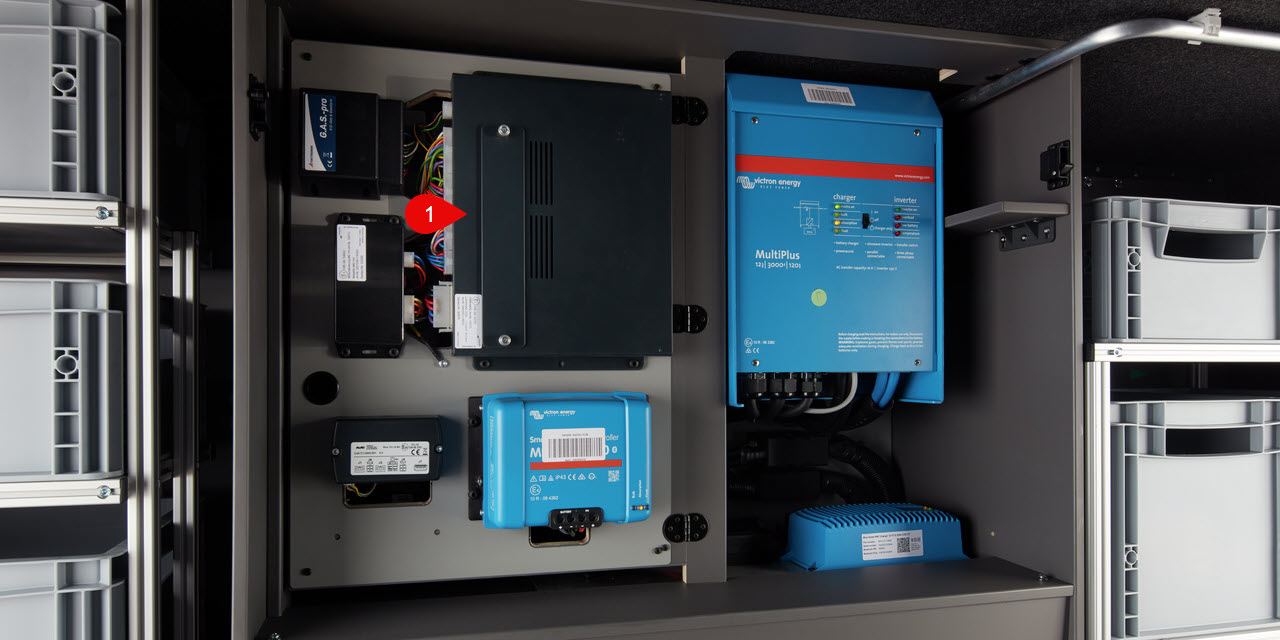

The light module protects the entire lighting system as well as the associated glass panel switches. In all vehicles, the light module is visibly located in the rear garage (see marking 1).
The fuse assignment can be found on the stickers on the device itself or in the following illustrations:

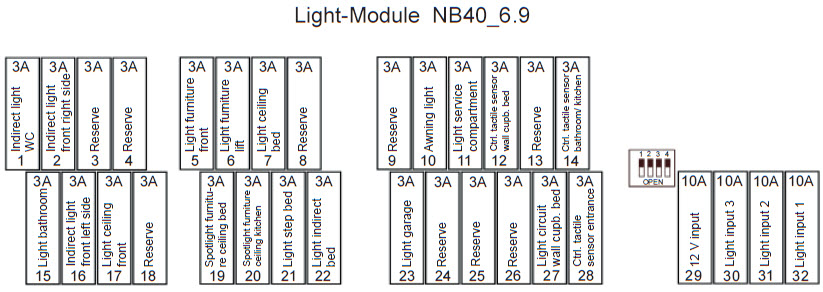

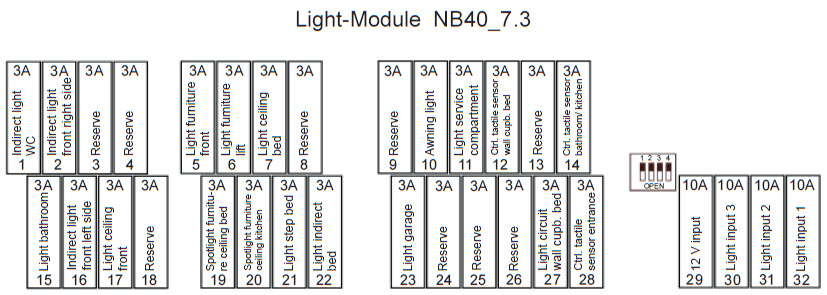

iSmove

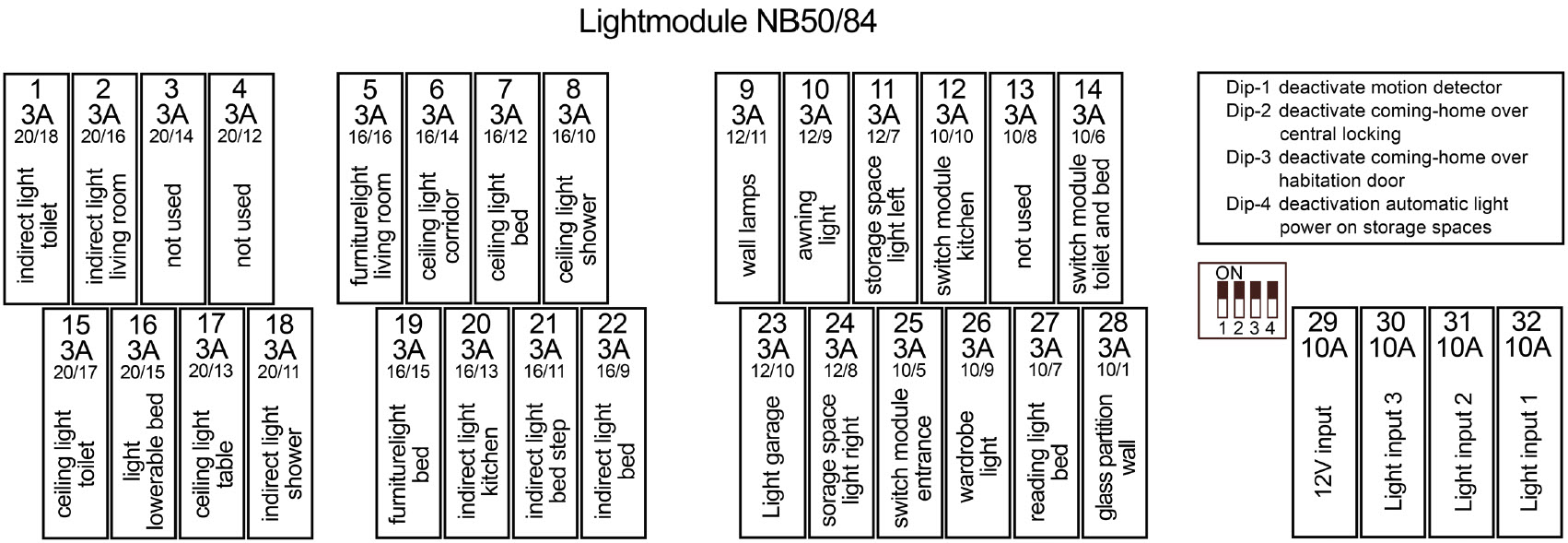

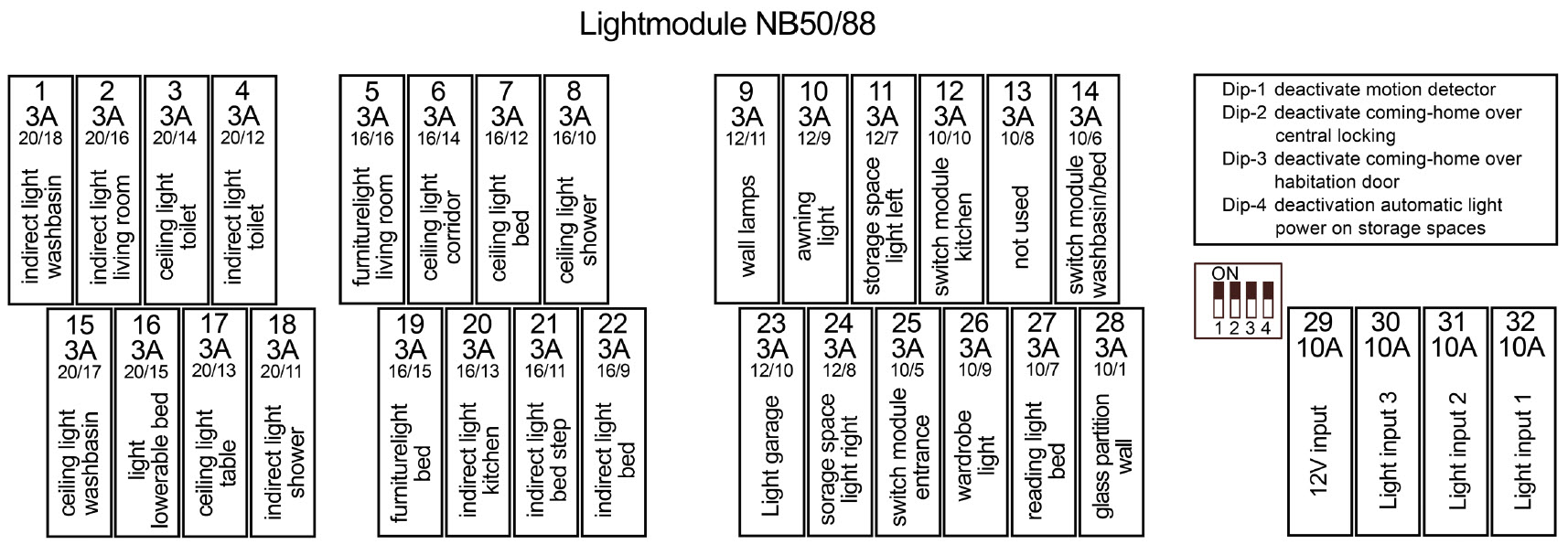

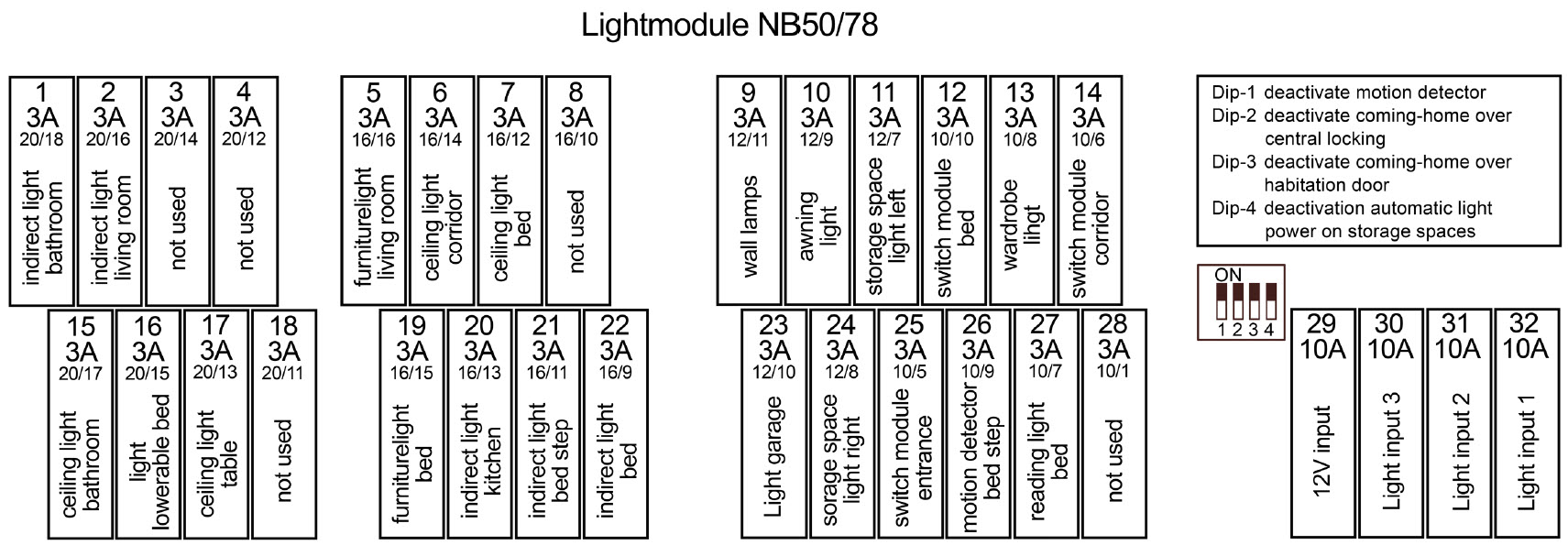

Arto

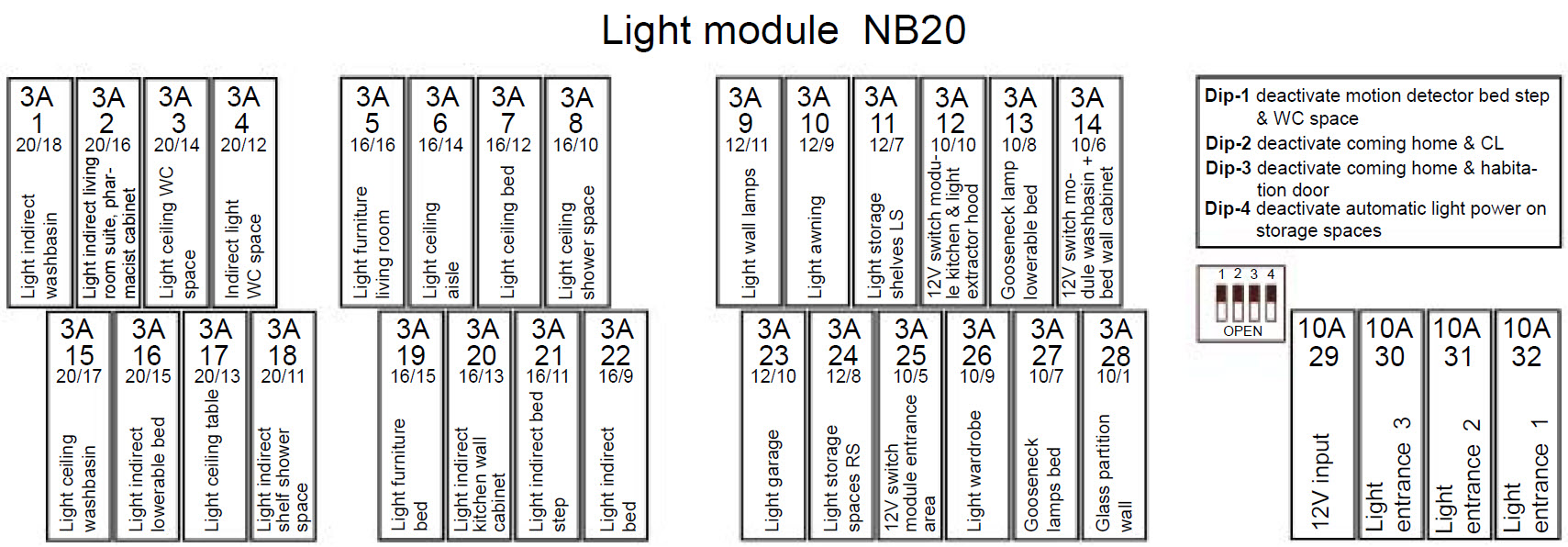

Flair
